Wired-Wireless Security Solution

    Network Expert Group, For your Security
    Wired-Wireless Security Solution
    Features

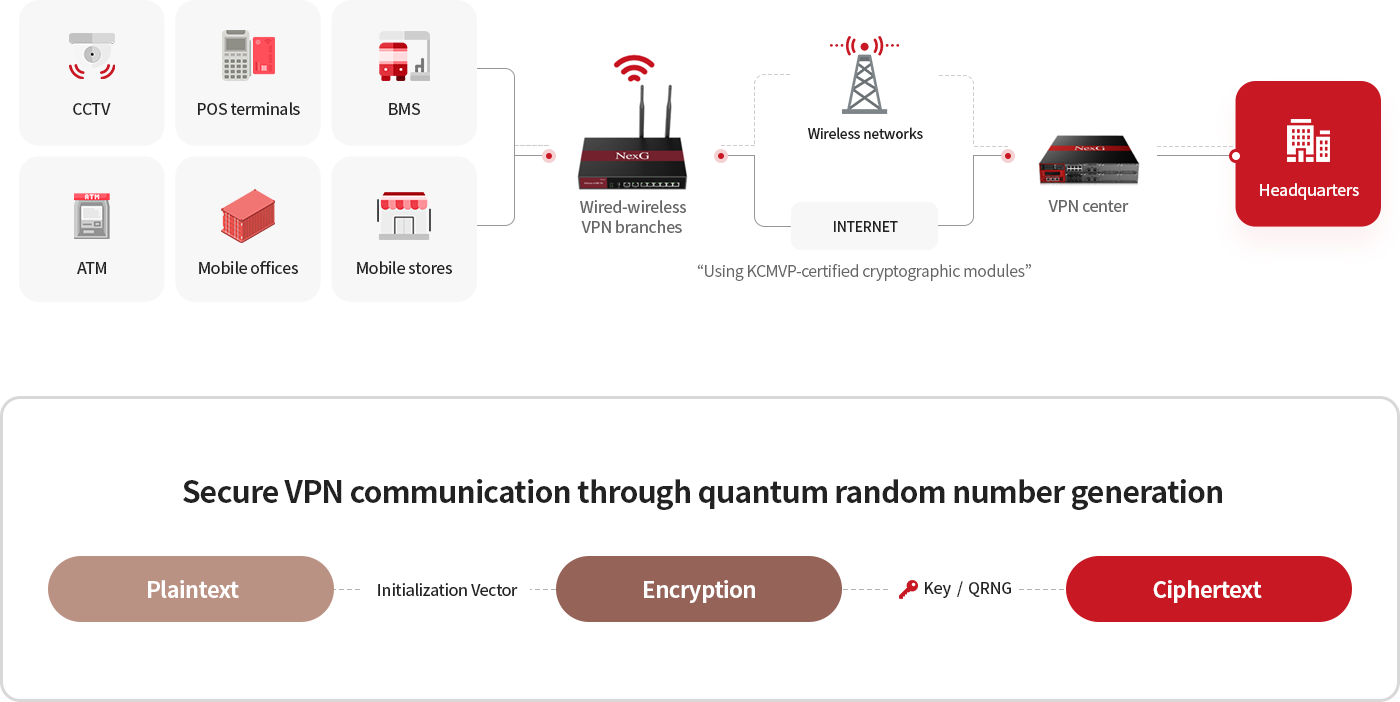

    The security gateway, based on 3G/LTE/Wi-Fi, provides the same functions as next-generation UTM, including VPN and firewall capabilities, supports diverse wired and wireless communication environments, and is suitable for various applications, including unmanned facility management.

    Functions
    • 1 High Availability

      Supports dual-line redundancy using wired (Ethernet) and wireless (3G/LTE) connections. Automatically switches to wireless in case of wired network failure, ensuring uninterrupted service.

    • 2 Security

      Supports IPsec-based VPN encryption technology, providing a secure environment for data transmission.

    • 3 Application Scope

      The ultra-compact H-VPN 20 model features fanless, low-power design, enabling easy installation and flexible deployment in various operational environments.

    • 4 Cost Efficiency

      Provides VPN encryption tunneling technology over 3G/LTE multi-wireless networks, enabling unrestricted VPN tunnel configuration.

    Hardware Specifications

    Model Line-up
    Category H-VPN 20 VForce UTM 7S
    Appearance
    CPU 2 Core 2 Core
    Memory 512 MB 1 GB
    Storage 4 GB 32 GB
    NIC 1GC 2 7(1 POE)
    1GF - -
    10GF - -
    40GF - -
    100GF - -
    WIFI / LTE WiFi(OPTION) / 3G, LTE - / 3G, LTE(OPTION)
    MGMT - -
    QRNG - O
    Firewall Throughput (MAX) 1.2 G 2.2 G
    Power Adapter Single
    W x D x H (mm) 109 x 82 x 22 270 x 168 x 43
    ❖ Specifications and appearance are subject to change for product improvements.

    Detailed Features

    Firewall
    • Stateful Inspection
    • Supports policies based on Zone and User
    • Supports policies based on MAC Address, Network, Domain objects, and GeoIP (country DB)
    • Supports schedule-based policies
    • Search functions for unused policies, unused objects, and duplicate policies
    • Policy verification through policy simulation
    • Automatic policy changes according to interface/line status changes
    • Supports user authentication integration (RADIUS, LDAP, TACACS+)
    • User 2FA (Two-Factor Authentication) support
    • Supports S-NAT / D-NAT / Double NAT / Excluded NAT, LS-NAT
    • Bridge firewall support without network configuration changes
    Application
    • Application-based behavior control
    • Control of games, P2P, HTS / webmail
    • Instant messenger / Web Hard control
    • Streaming and file-type control
    IPS
    • Deep Packet Inspection
    • User-defined signatures
    • Snort Rule Format support / PCRE support
    • Profile-based policy configuration
    • Blacklist / Whitelist / Anti-Evasion
    • Stream-based Anti-Virus blocking
    Anti DDoS
    • Protection against TCP/UDP/ICMP/DNS/HTTP flooding
    • Signature-based protection against scans and sweeps
    • Protection against tampering and manipulation (including traffic-limit based attacks)
    Web Filter
    • URL and URI extended inspection / user-defined DB filtering
    • Filtering policies based on Web Category DB
    • Blocking of illegal websites based on the Korea Communications Standards Commission (KCSC) DB
    • External DB filtering support for malware, phishing, etc.
    • User-defined URL filtering
    Network
    • 802.3ad Link Aggregation, 802.1Q VLAN Trunk
    • RIP, OSPF
    • PIM-SM/DM, IGMP support
    • ECMP routing / Policy-based routing
    • VoIP (H.323, SIP) support
    • QoS (guarantee, limit, priority) support
    • VRRP, IP backup
    • DHCP server, DHCP Relay agent support
    • DNS, Split DNS, DDNS, LLDP support
    • IPv6 Tunneling 6to4, ISATAP
    IPSec VPN
    • IKE version 1, 2
    • Support for multiple encryption algorithms (3DES / AES / SEED / ARIA / LEA)
    • Support for multiple integrity algorithms (SHA1 / SHA256 / SHA384 / SHA512)
    • Line-based load balancing tunnel support
    • Flexible VPN redundancy configuration (A-A, A-S) with Multi-Tunneling technology
    • VPN support in network bonding and bridge environments
    • VPN operation in line NAT environments
    • VPN disconnection on device theft or extended inactivity
    • VPN line switching with built-in line fault detection
    HA
    • Active-Active / Active-Standby without L4, LLCF
    • Configuration, policy, and session synchronization
    Monitoring & Management
    • Web UI, CLI / Dashboard
    • Administrator account authentication integration support (Radius, AD, LDAP, TACACS+)
    • SNMP v1 / v2 / v3 support
    • Syslog forwarding with keyword filtering
    • Statistics and reporting support
    • Policy export / import support
    • System configuration / firmware backup and recovery support
    • VForce NMS and NexG ESM integration
